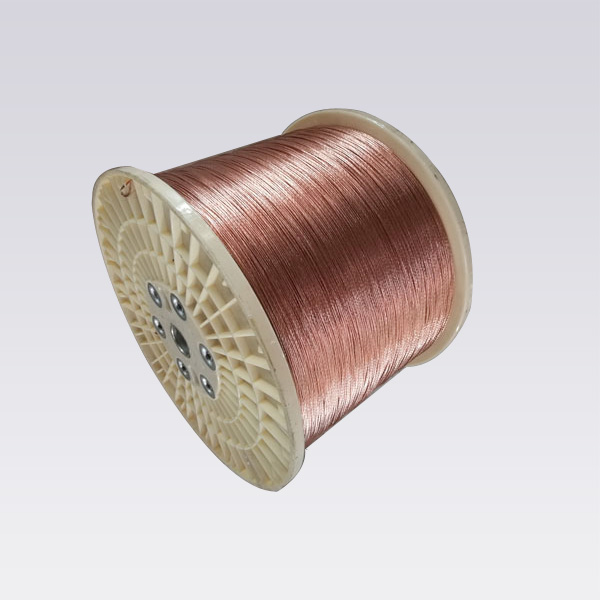

Stranded Wire

Model: CCAS

Cross Section Area:0.05mm²-20mm²

Capacity:300 tons/m

Conductivity: ≥62%

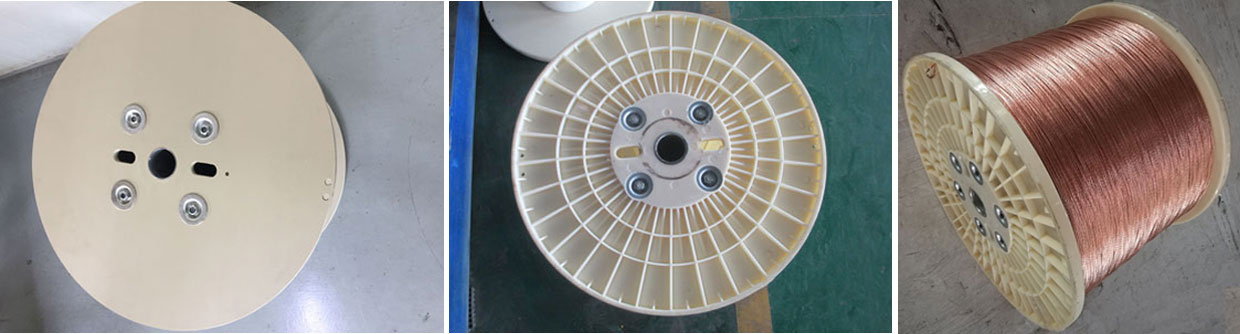

Packing Option: DIN 400 560 630 800

  • Description
Copper Clad Aluminum Stranded wire consists of a number of small CCA wires. Density of CCA wire is lower than that of copper wire, so CCA stranded wire has advantage on length compare with copper stranded wire. That will help cable manufacturer to reduce production cost.

Feature:
High Flexibility ;Outstanding bending performance

Technical data

Structure   Calculated Cross Section Area(mm2) Calculated Overall diameter(MM) MAX D.C Resistance(Ω/km) KG/KM
1.31
Strands Strands/Nominal diamater of single wire
13 13/0.20 0.408 0.83 67.2
20 20/0.20 0.628 1.03 43.68 2.02
32 32/0.20 1.005 1.31 27.3 3.24
10 10/0.25 0.491 0.91 55.91 1.58
16 16/0.25 0.785 1.16 34.94 2.53
26 26/0.25 1.276 1.47 21.5 4.11
29 29/0.25 1.423 1.55 19.28 4.58
19 19/0.47 3.295 2.37 8.33 10.61
19 19/0.59 5.192 2.97 5.28 16.72
19 19/0.75 8.39 3.78 3.27 27.01
7 7/1.29 9.144 3.94 3 29.44
7 7/1.33 9.72 4.06 2.82 31.3

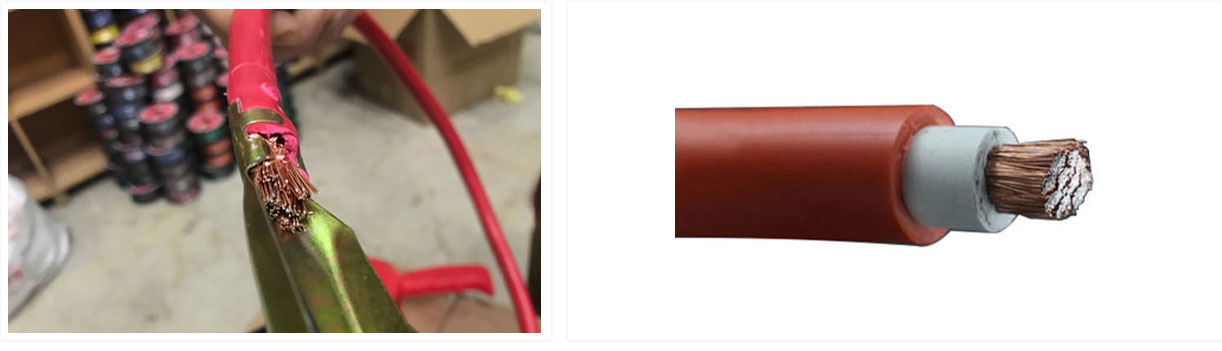

Application
CCA stranded wires are used for electrical and industrial purpose

Stranded Wire

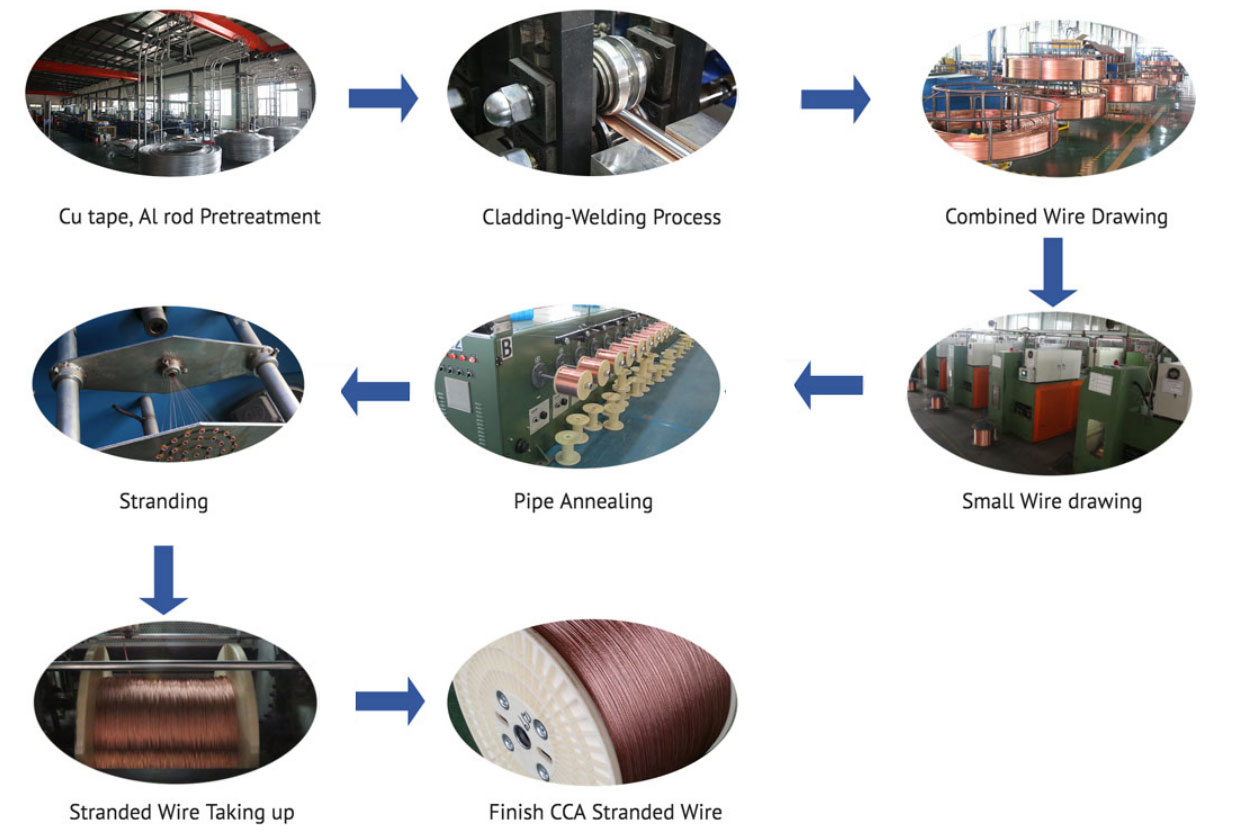

Process Flow

Stranded Wire

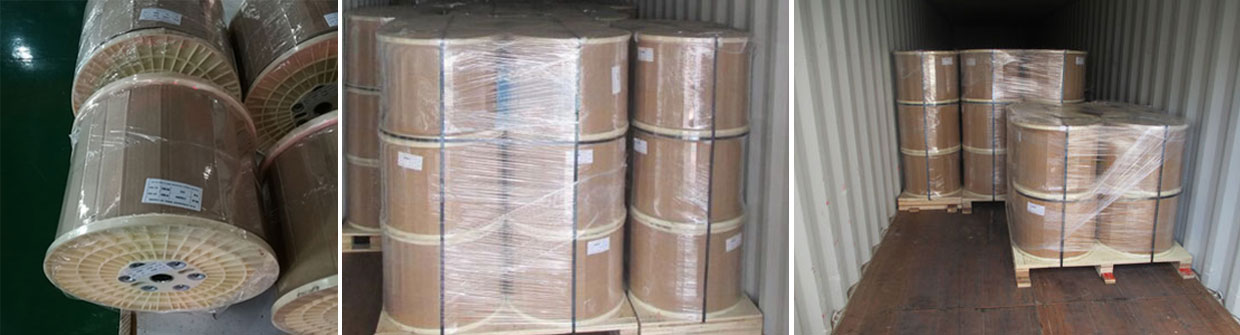

Shipping & Packaging

Stranded Wire Shipping & Packaging

Stranded Wire Shipping & Packaging
