Copper Clad Aluminum Alloy wire (CCAA) is a kind of bimetallic wire by covering copper on the surface of aluminum alloy rod. CCAA has high tensile strength same as CCAM wire, and high conductivity same as CCA wire . CCAA wire can be processed same as pure copper wire.
Features:
Compared to Copper wire
1. Small density, light weight
2. No brittleness under low temperature, good creepage resistant
Compared to CCAM wire
1. Higher conductivity;
2. No electrochemical corrosion (oxidation).corrosion will lead to wire breaking
Compared to CCA wire
1.Higher tensile strength
2.Good flexibility
3.Good Solderability
Characteristics Comparison
| Material | Copper Content by volume | Model | Elongation(%) | Tensile Strength(Mpa) | Resistivity（Ω.mm2/m） | Conductivity(%) | Density（g/cm3） | Length(M/kg) | Compressive Creep Resistance(%) | ||||||||||
| Copper Wire | / | TR0.110 | 16-21 | 235-241 | ≤0.017241 | 100 | Excellent | ||||||||||||
| CCS Wire | / | CCS0.110 | 2020/12/19 | 497-507 | ≤0.041000 | 42 | Bad | ||||||||||||
| CCA Wire | 15A | CCA0.110 | 2020/5/12 | 150-155 | ≤0.026760 | 64 | Bad | ||||||||||||
| CCAM Wire | 15A | CCAM0.110 | 2020/8/13 | 198-211 | ≤0.032000 | 53 | Bad | ||||||||||||
| CCAA Wire | 15A | CCAA0.110 | 2020/10/14 | 195-205 | ≤0.026500 | 65 | ≥3.63 | 28988 | Good |
Technical Data
| Description | Copper Content in Mass(%) | Aluminum Content(%) | Norminal Diameter(MM) | Tolerance(MM) | Elongation(%) | Tensile Strength(Mpa) | Resistivity(Ω.mm2/M) | Conductivity(%) | Density(g/cm3) | ||||||||||
| CCAA-15A | 37%-40% | 63%-60% | 0.080≤d≤0.100 | ±0.003 | ≥9 | ≥172 | ≤0.0270 | ≥64 | ≥3.63 | ||||||||||
| 0.100＜d≤0.120 | ≥10 | ≥172 | |||||||||||||||||
| 0.120＜d≤0.140 | ≥10 | ≥172 | |||||||||||||||||
| 0.140＜d≤0.200 | ≥10 | ≥172 | |||||||||||||||||
| 0.200＜d≤0.400 | ±0.005 | ≥12 | ≥160 | ||||||||||||||||
| 0.400＜d≤0.600 | ≥13 | ≥150 |
Application
1.Inner conductor material of Low voltage power cable, communication &signal cable
2.Parallel double cores line conductor telephone communication
3.Computer local network, network cable, network line
4.Braiding wire of signal cable and LV &MV power cable
5.Medical equipment & connection conductor material
6.RF cable inner conductor & shielding
7.Enameled magnet wires
8.Car locomotive private sidings
9.Others

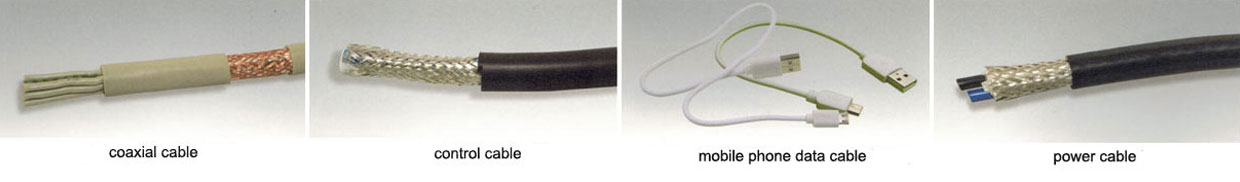

Braid Shielding
Wireless Charging Coils

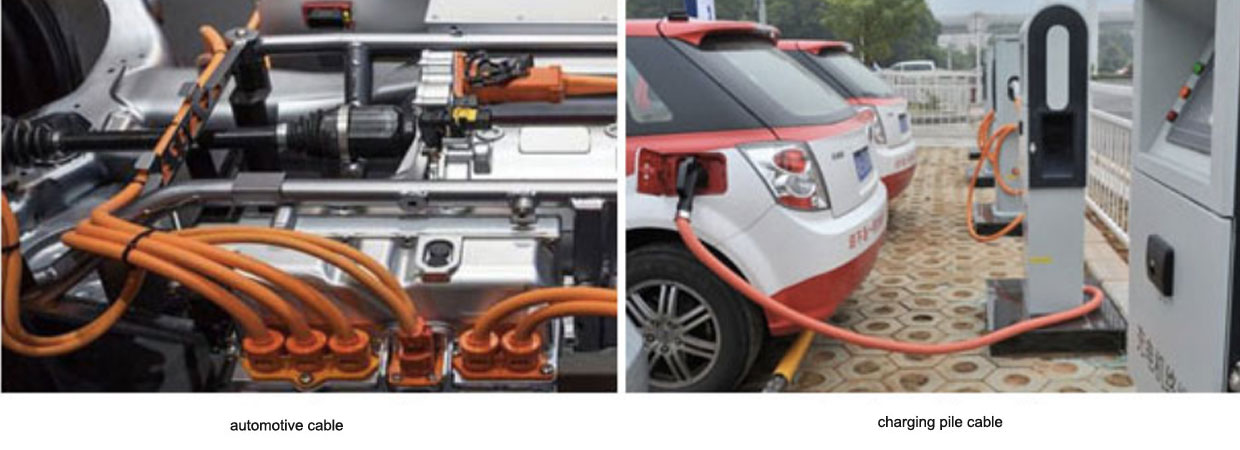

Power Cable

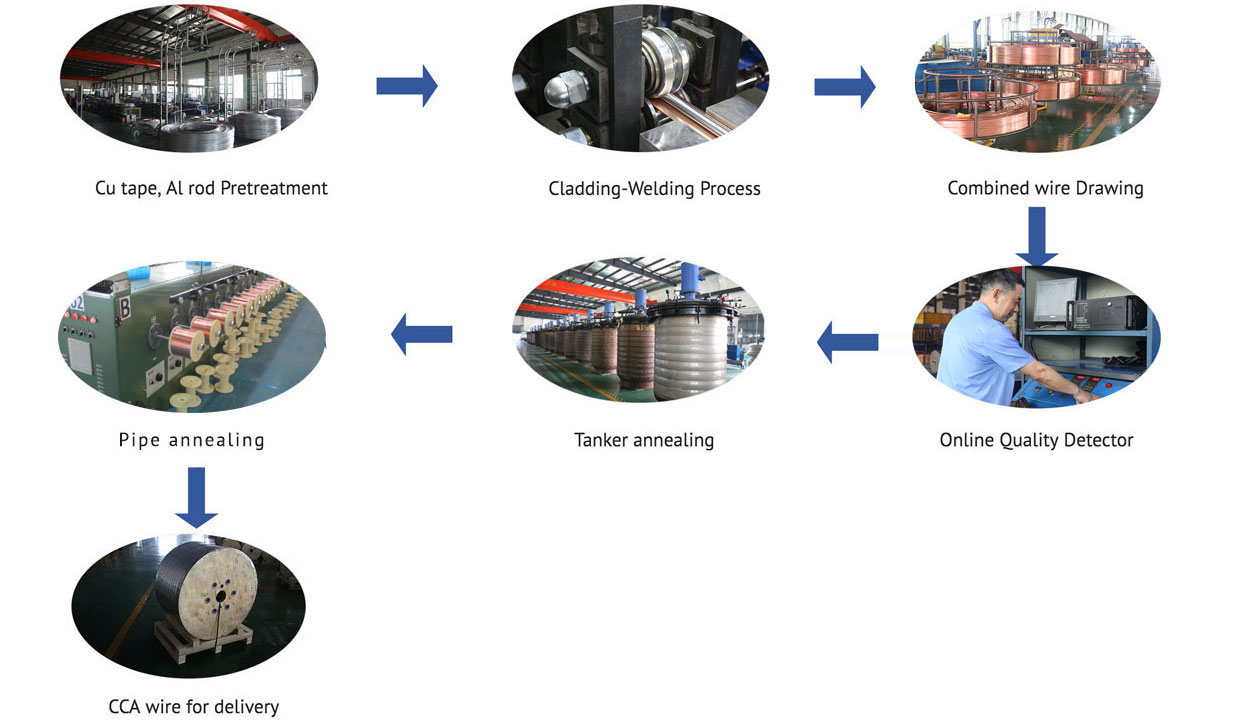

Process Flow

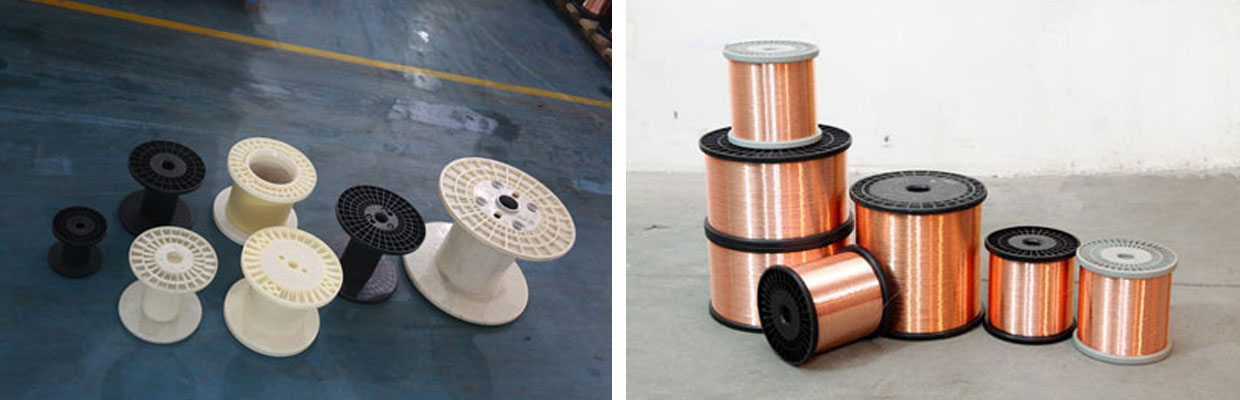

Bobbin Option

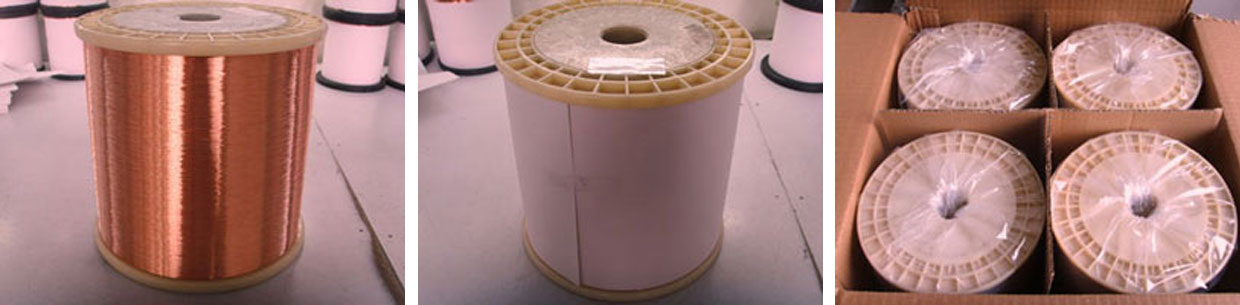

Packaging
Shipping
